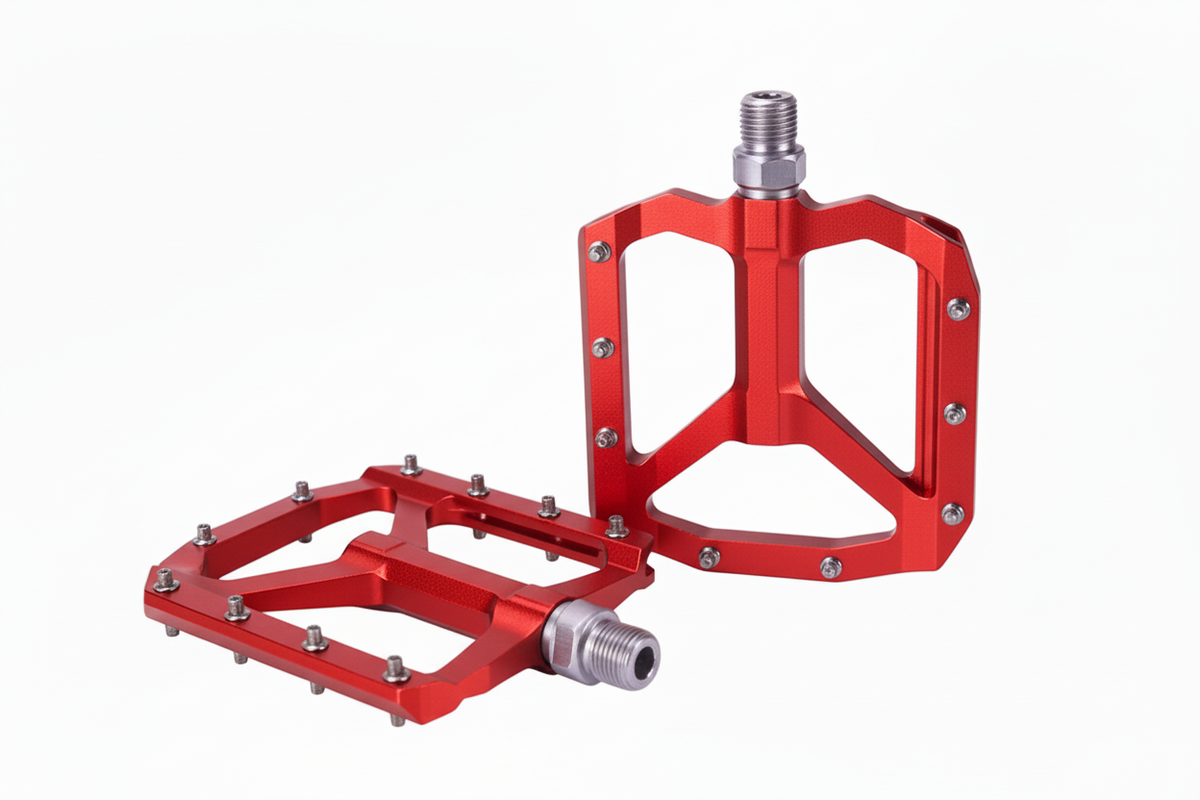

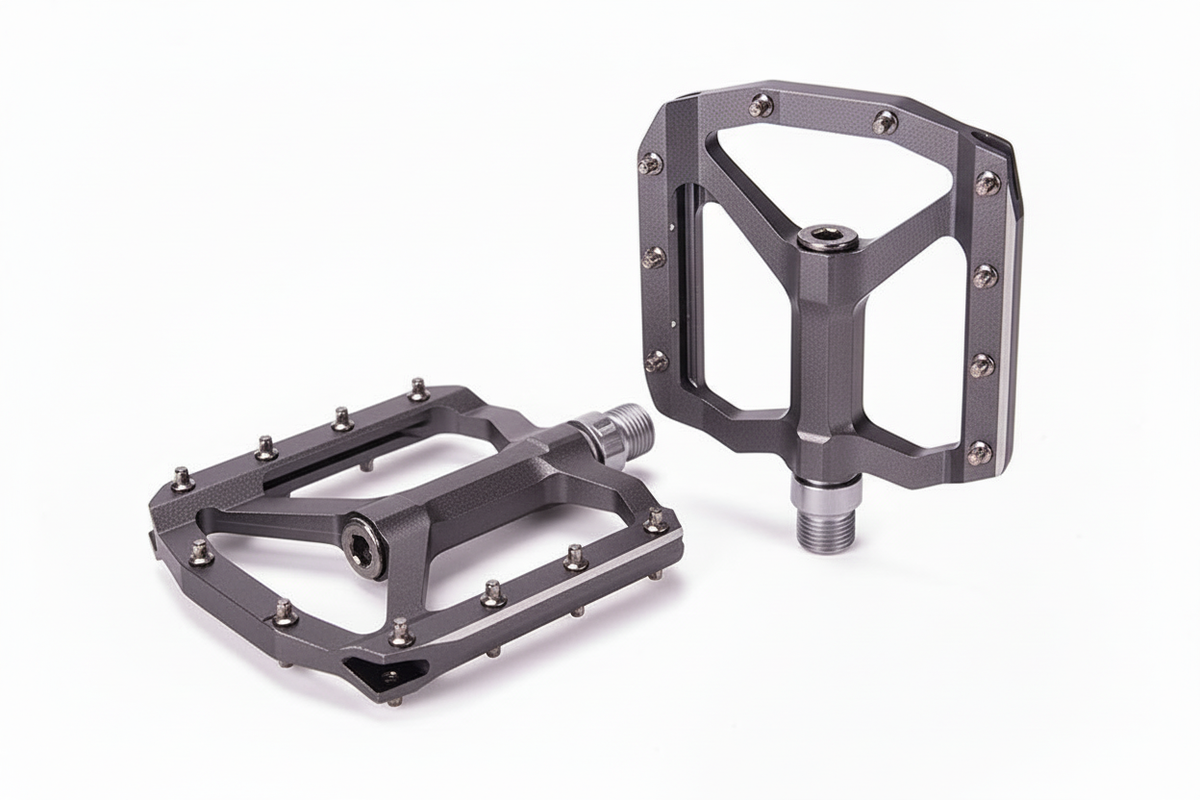

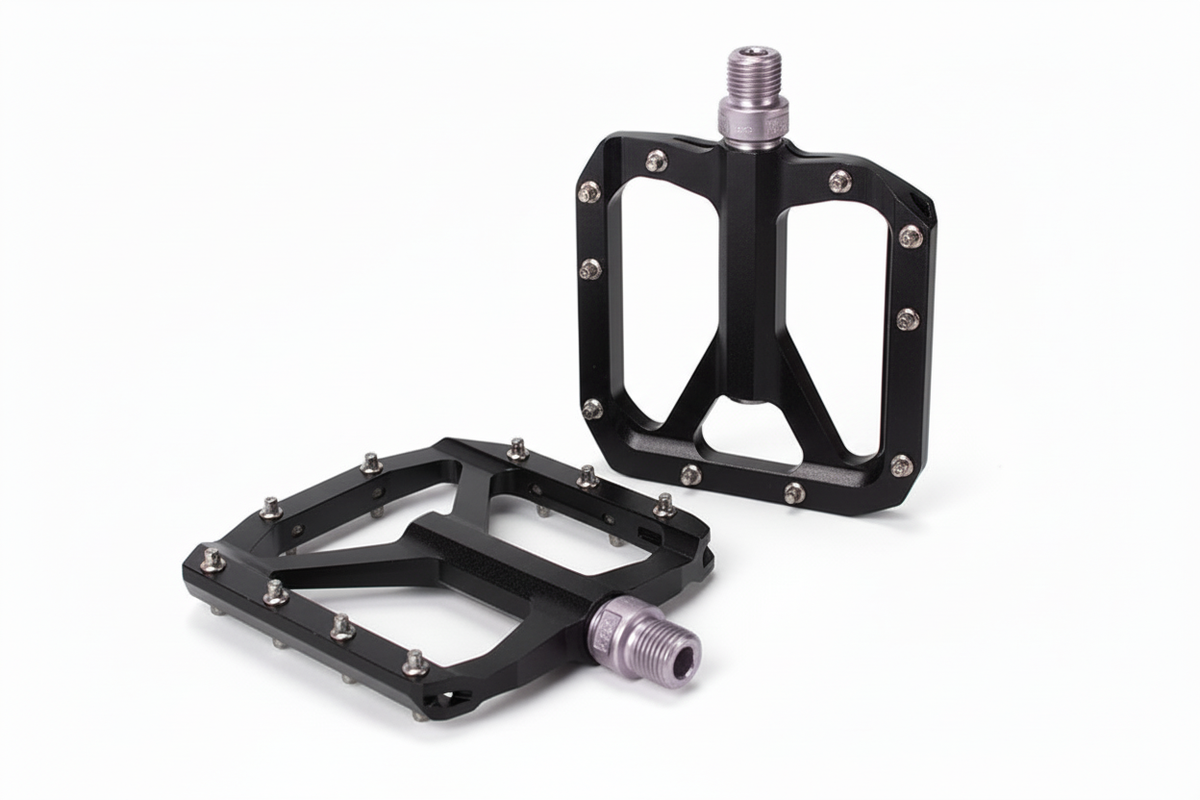

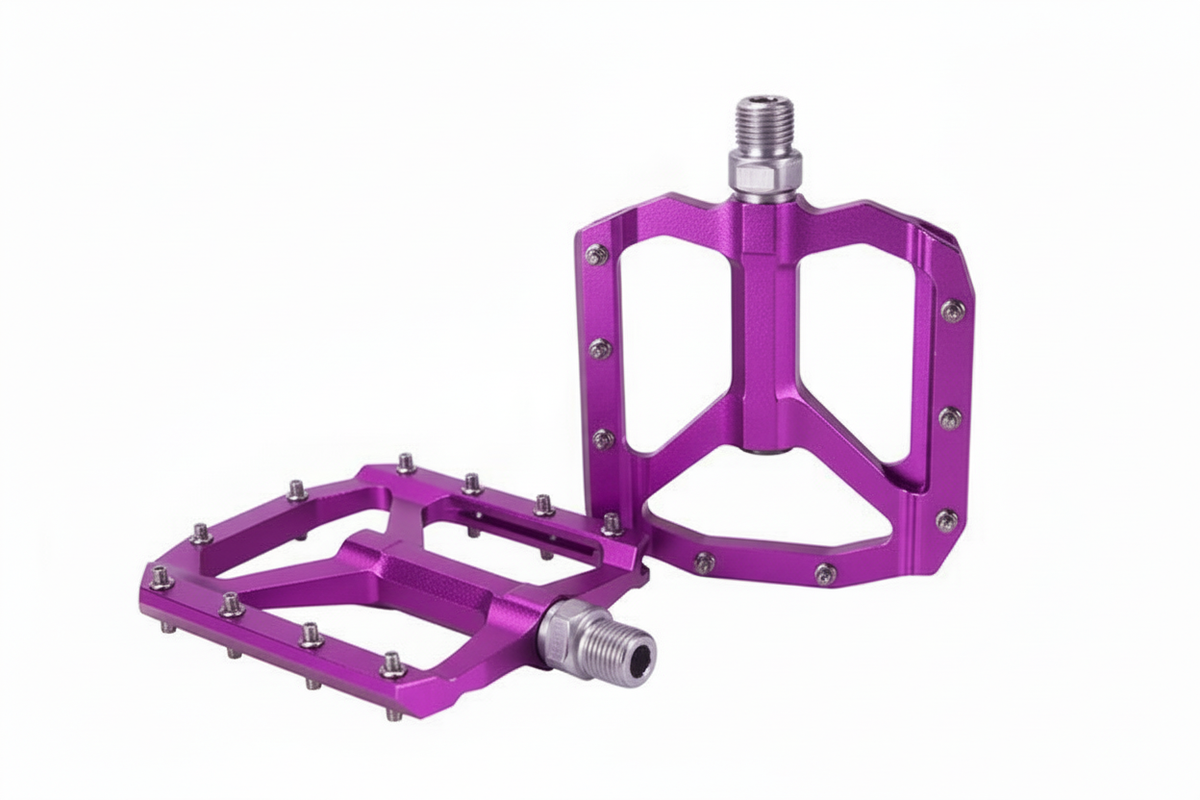

Pedals that slip underfoot and pins that wear down fast are two of the biggest annoyances riders run into when moving past stock components — and both hit your confidence on the trail harder than almost anything else. These flat mountain bike pedals pair a CNC-machined aluminum alloy platform with conical anti-slip pins and a 12mm steel axle running on a DU bushing plus sealed cartridge bearing, for a stable, grippy platform that holds up across trail, gravel, and enduro riding.

Why It Stands Out

✓ CNC-machined aluminum body — precision machining keeps dimensions consistent and the platform rigid underfoot, so there's no flex when you're driving power through the pedals.

✓ Conical anti-slip pins — tapered pins bite into your shoe sole while still allowing small foot adjustments on the fly, so you can shift your stance on technical terrain without fully losing grip.

✓ 12mm high-tensile steel axle — the larger axle diameter adds load capacity and rigidity compared with the 9mm axles found on entry-level pedals, holding up better to the repeated impacts of trail and enduro riding.

✓ DU bushing plus sealed cartridge bearing — a dual-support axle setup combines a DU bushing for shock resistance with a sealed cartridge bearing for smooth spin. The sealed design is built to keep water and grit out during wet, muddy rides.

✓ 118 × 99.5mm platform, 13.8mm thick — a wide platform gives your foot solid support, while the low-profile 13.8mm thickness keeps the pedal tucked close to the crank for better ground clearance on technical trails.

✓ Open-cage hollow body — cutaway sections let mud and water pass through instead of building up on the surface, so the pins stay exposed and gripping your shoe.

✓ ~304g per pair — a light aluminium build that trims rotational weight without giving up the platform stiffness trail riding demands.

✓ 9/16" universal thread — fits the vast majority of adult mountain bikes, gravel bikes, enduro bikes, and cruisers straight out of the box, no adapters needed.

Where to Use It

→ Trail and enduro riding — conical pins and a wide platform give you a stable, grippy contact point on technical singletrack, loose ground, and rooty descents.

→ Gravel and adventure cycling — the low 13.8mm profile works well where ground clearance matters, and the open cage sheds mud that builds up on long mixed-surface rides.

→ Upgrading from stock plastic pedals — the aluminium platform and pin system are a real step up in grip and rigidity over moulded plastic stock pedals.

→ Urban and commuter riding — the sealed bearing system and aluminium build hold up to daily use in wet city conditions.

→ Bike park and pump track sessions — the reinforced 12mm axle is built to take the repeated lateral and impact loads of jumps, drops, and berms.

How It Works

1. Conical pin grip system — tapered pins sit across the platform surface. Step onto the pedal and the pin tips press into your shoe sole, creating multiple points of grip. Their conical shape allows a little foot movement before full resistance kicks in, so you can adjust your position without the pins fully letting go.

2. DU bushing and sealed cartridge bearing axle — the 12mm steel axle rides on a DU bushing at the outer end and a sealed cartridge bearing at the inner end. That sealed bearing holds grease in and keeps water and grit out, helping the axle keep spinning smoothly over time.

3. Open-cage aluminium platform — cutaways in the body form drainage channels through the platform, so mud, water, and debris pass through rather than sitting on the surface, keeping the pins at full height and in contact with your shoe.

How to Install and Set Up

1. Identify left and right pedals — each axle is stamped "L" (left) or "R" (right). Fitting one on the wrong side will cause it to unthread while riding, so double-check before you start.

2. Clean the crank arm threads — wipe the threaded holes with a clean cloth to clear old grease or debris left from the previous pedals.

3. Grease the axle threads — a thin coat of bicycle grease on the threads before fitting helps prevent seizing and makes future removal easier, especially after riding in wet conditions.

4. Start threading by hand — thread each pedal in by hand first to avoid cross-threading. The right pedal uses a standard clockwise thread; the left pedal is reverse (counter-clockwise).

5. Tighten with a pedal wrench or 6mm hex key — use the flats on the axle with a pedal wrench, or a 6mm hex key in the axle end, and tighten evenly and firmly.

6. Check foot position once fitted — stand on the pedals and confirm the ball of your foot lines up over the axle centre, the most efficient and stable spot for pedalling.

Tip: A quick rinse of the platform after muddy rides keeps the pin holes clear and stops hardened debris building up around the bearing seal.

Care and Maintenance

✓ Rinse after wet or muddy rides — clear mud and grit from the platform and pin areas with a low-pressure hose or damp cloth. Avoid pointing high-pressure water directly at the axle seal, which can force water past it.

✓ Check pins now and then — look for bending or wear after hard riding, especially following rock or root strikes. Damaged pins can be swapped out individually with a standard hex key.

✓ Re-grease threads when removing pedals — apply fresh grease to the axle threads whenever pedals come off and go back on, to guard against corrosion and thread damage.

✓ Check for axle play every few months — hold the crank and gently rock each pedal sideways. Noticeable play may mean the bearing or bushing needs servicing, which is normal after a lot of wet-weather riding.

✓ Dry before long-term storage — if the bike will sit unused for a while, make sure the pedals are dry and consider a light coat of bike-specific protectant on the platform.

Product Specifications

What's Included

1 × pair of flat mountain bike pedals (left + right)
